Isaac GR00T N1.7 on Jetson Thor

Deploy NVIDIA’s Isaac GR00T N1.7 Vision-Language-Action (VLA) model on NVIDIA Jetson AGX Thor with TensorRT mixed NVFP4 quantization, taking end-to-end inference from 125 ms down to 39.9 ms, a 3.1x speedup at 25 Hz, with no measurable loss in task success.

What is Isaac GR00T N1.7?

Isaac GR00T is NVIDIA’s open foundation model for generalized humanoid robot reasoning and skills. GR00T N1.7 pairs a vision-language backbone with a diffusion-transformer action head: it takes camera images, robot proprioceptive state, and a natural-language instruction, and emits a chunk of robot actions through a short flow-matching denoising loop.

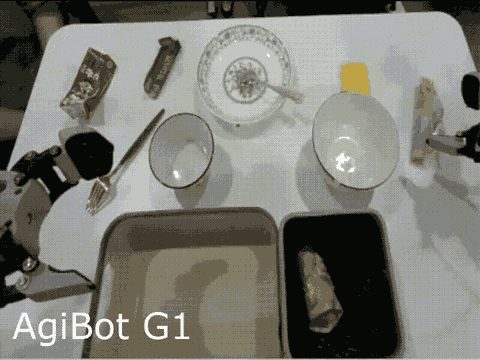

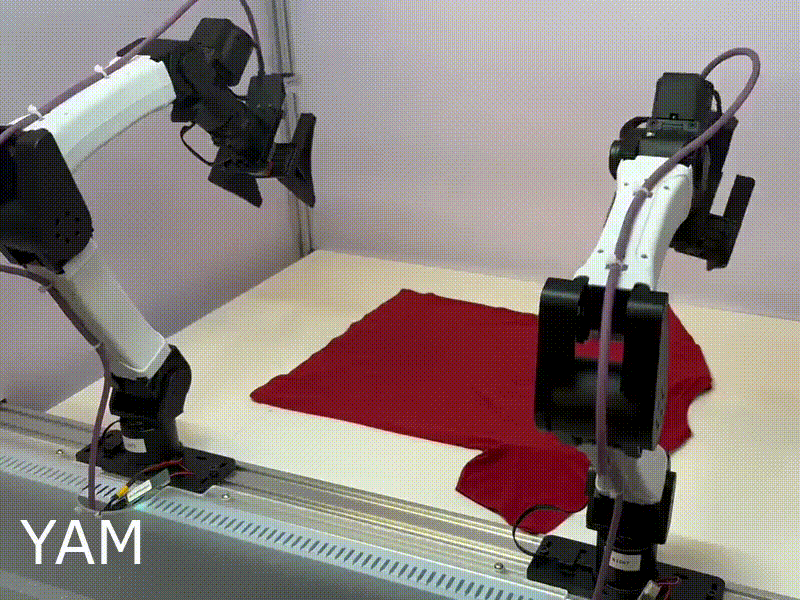

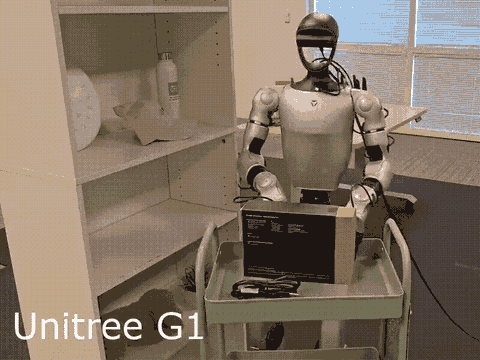

The same foundation model is post-trained onto different robot bodies, so the pipeline in this tutorial is not specific to any one embodiment:

The backbone is nvidia/Cosmos-Reason2-2B, a Qwen3-VL architecture VLM (its config declares Qwen3VLForConditionalGeneration), loaded as a separate gated download rather than being bundled in the GR00T checkpoint, which is why Step 4 requires accepting its license. GR00T does not run all of it: the checkpoint sets select_layer: 16, and the loader physically pops text layers off the top until 16 remain, so 12 of Cosmos-Reason2-2B’s 28 text layers are discarded before inference.

The model is a two-stage pipeline, and the two stages have very different performance characteristics, which turns out to be the key to optimizing it:

Why Jetson AGX Thor?

VLA models fuse a vision encoder, a language model, and an action decoder into one pipeline that has to run at real-time control rates. Jetson AGX Thor brings Blackwell-class GPU compute with up to 128 GB of unified memory, so a 3B-parameter VLA fits entirely on-device with room for the TensorRT engines alongside it. Critically, Thor’s Blackwell GPU has native NVFP4 support, a 4-bit floating-point format with per-block scaling, which is what makes the aggressive quantization in this tutorial possible without the accuracy collapse you would get from 4-bit integer formats.

Pipeline Overview

Checkpoint ──► ONNX (per-component) ──► Calibrate (NVFP4/FP8) ──► TensorRT Engines ──► Inference

A single script (build_trt_pipeline.py) runs all five stages.

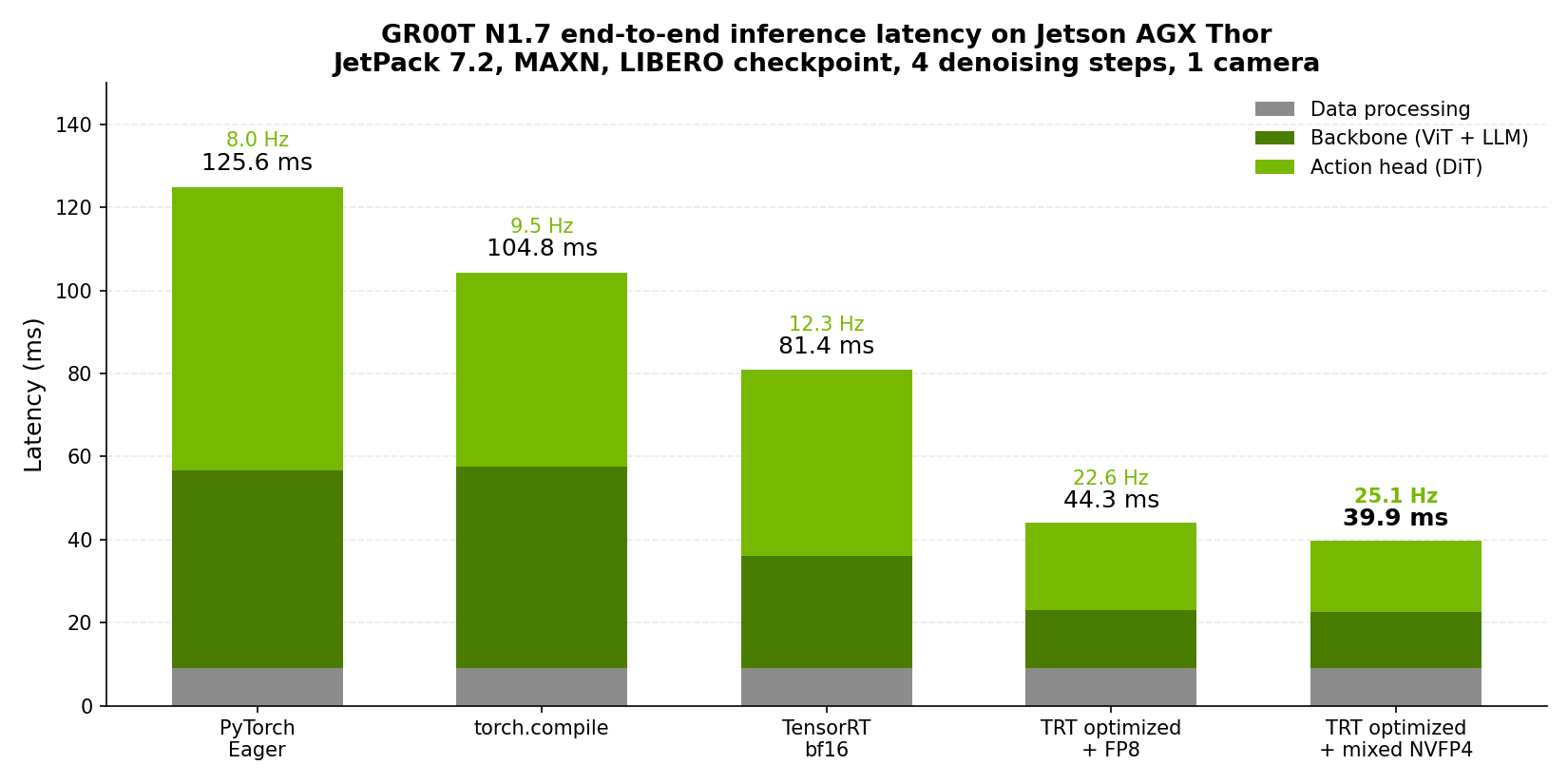

Performance

Benchmarked on Jetson AGX Thor Developer Kit (JetPack 7.2, MAXN power mode), GR00T-N1.7-LIBERO/libero_10, 4 denoising steps, 1 camera, batch size 1. Latencies are medians over 20 iterations after 5 warmup iterations.

Accuracy holds across all three TensorRT configurations, and it holds where it matters most: closed-loop task success is on par with the PyTorch baseline.

Note: these numbers are measured on JetPack 7.2, which is roughly 13% faster than JetPack 7.1 across every unoptimized configuration, so the speedup over the bf16 TensorRT baseline is 2.04x here rather than the 2.41x quoted against a JetPack 7.1 baseline.

How the Optimization Works

Two independent mechanisms combine to produce the end-to-end latency under 40 ms. Understanding which one targets which stage explains why you need both.

1. Per-component quantization

Precision is chosen per component rather than uniformly, because the vision tower and the language model tolerate quantization very differently:

Even under the NVFP4 policy, accuracy-sensitive layers stay at higher precision: the LLM o_proj and down_proj, and the DiT attention, remain FP8. FP8 and NVFP4 are both Q/DQ recipes layered over an FP16 graph, so the TensorRT network boundary stays FP16 in either case. This is what shrinks the backbone from 27 ms to 13.6 ms.

2. Optimized execution profile

This is a graph-restructuring pass, independent of precision, and it is where the action head goes from 45 ms to 17.2 ms:

• Cross-attention K/V hoisting. The DiT’s cross-attention keys and values depend only on the vision-language context, not on the denoising timestep. They are computed once and reused across all 4 denoising steps instead of being recomputed each step. This produces the extra dit_cross_kv_*.engine artifact you will see in the output directory.
• Offline timestep precomputation. Because the 4 denoising timesteps are fixed and known ahead of time, everything derived from them (AdaLN modulations, output modulations, action time embeddings) is computed at export time and saved to action_head_constants.pt. At runtime these are simply indexed.
• Linear-layer fusion. Projections that share an input are concatenated into a single larger GEMM, reducing kernel launches.
• CUDA graph capture of the whole action head, which is why the benchmark prints Action Head: TRT CUDA graph.

Prerequisites

Hardware

• NVIDIA Jetson AGX Thor Developer Kit
• NVMe SSD strongly recommended. Budget ~60 GB free (26 GB container, ~13 GB per engine build, ~7 GB assets)

Software

Check your setup:

cat /etc/nv_tegra_release   # Should show R39
nvidia-smi                  # Should show CUDA 13.x, NVIDIA Thor
docker --version            # Docker 28.x or newer
git lfs version             # Must be present before cloning (see Step 2)

Hugging Face access

Every GR00T checkpoint loads the gated backbone nvidia/Cosmos-Reason2-2B. Accept its license at huggingface.co/nvidia/Cosmos-Reason2-2B before you start. Gating is automatic, so approval is immediate.

Step 1: Set Jetson to Maximum Performance

Boost all clocks for consistent benchmark results.

# Set maximum performance power mode
sudo nvpmodel -m 0

# Lock all clocks to maximum frequency
sudo jetson_clocks

Verify with:

sudo jetson_clocks --show

Step 2: Install Git LFS (before cloning)

The Isaac-GR00T repository stores the Thor torchcodec wheel and the demo dataset parquet files as Git LFS objects, so install git-lfs before you clone.

Install it with apt:

sudo apt-get update && sudo apt-get install -y git-lfs
git lfs install

Step 3: Clone the Repository and Add the Optimization Patch

3.1 Clone Isaac-GR00T

git clone https://github.com/NVIDIA/Isaac-GR00T.git
cd Isaac-GR00T
git checkout 9c7e746b2cd37a810070a98ef41d290a07e806c2
git lfs pull

Confirm LFS content actually arrived. This should report a Zip archive, not ASCII text:

file scripts/deployment/thor/wheels/torchcodec-*.whl

Note: Pinned to commit 9c7e746 (2026-07-08).

3.2 Add the TensorRT Optimization Patch

Upstream Isaac-GR00T at this commit includes the bf16 TensorRT pipeline but not the quantization and execution optimizations. From the root of the checkout (Isaac-GR00T/), run the helper script to add them:

wget -qO- https://www.jetson-ai-lab.com/code-samples/groot_n17_on_thor/download.sh | bash

This applies a patch touching only scripts/deployment/ plus one test file (13 files, +2720/−217 lines), adding four new modules:

• n1d7_optimization_config.py: precision policy, the single source of truth shared by export, build, and runtime
• calibration.py: per-layer quantization recipes and the calibration loop
• n1d7_optimized_export.py: builds and exports the restructured action-head graph
• n1d7_optimized_runtime.py: executes the restructured inference loop

and extending export_onnx_n1d7.py, build_tensorrt_engine.py, build_trt_pipeline.py, trt_model_forward.py, benchmark_inference.py, and standalone_inference_script.py.

Step 4: Authenticate with Hugging Face

hf auth login --force
hf auth whoami   # must print your username

Step 5: Download the Checkpoint and Calibration Dataset

# Model checkpoint (~6.5 GB)
hf download nvidia/GR00T-N1.7-LIBERO \
  libero_10/config.json libero_10/embodiment_id.json \
  libero_10/model-00001-of-00002.safetensors \
  libero_10/model-00002-of-00002.safetensors \
  libero_10/model.safetensors.index.json \
  libero_10/processor_config.json libero_10/statistics.json \
  libero_10/experiment_cfg/conf.yaml \
  libero_10/experiment_cfg/config.yaml \
  libero_10/experiment_cfg/dataset_statistics.json \
  --local-dir checkpoints/GR00T-N1.7-LIBERO

# Calibration dataset for quantization (~614 MB)
hf download --repo-type dataset IPEC-COMMUNITY/libero_10_no_noops_1.0.0_lerobot \
  --local-dir examples/LIBERO/libero_10_no_noops_1.0.0_lerobot/

# GR00T needs its modality descriptor inside the LeRobot dataset
cp examples/LIBERO/modality.json examples/LIBERO/libero_10_no_noops_1.0.0_lerobot/meta/

Tip: Other fine-tunes work identically. Swap in libero_goal, libero_object, or libero_spatial, or your own finetuned checkpoint. The pipeline is the same for base and finetuned models.

Step 6: Build the Docker Image for Jetson Thor

cd docker && bash build.sh --profile=thor && cd ..

Note: The first build takes 10–15 minutes, plus time to pull the ~10 GB CUDA 13 base image. Subsequent builds use Docker cache.

Verify the runtime stack:

docker run --rm --runtime nvidia --gpus all gr00t-thor python -c "
import torch, tensorrt as trt
print('torch     ', torch.__version__)
print('TensorRT  ', trt.__version__)
print('device    ', torch.cuda.get_device_name(0))
print('capability', torch.cuda.get_device_capability(0))"

Expected: torch 2.10.0, TensorRT 10.15.1.29, NVIDIA Thor, capability (11, 0).

Step 7: Launch the Docker Container

docker run -it --rm --runtime nvidia --gpus all \
  --ipc=host --ulimit memlock=-1 --ulimit stack=67108864 \
  --network host \
  -v "$PWD":/workspace/repo \
  -v "$HOME/.cache/huggingface":/root/.cache/huggingface \
  -w /workspace/repo \
  -e PYTHONPATH=/workspace/repo \
  -e PATH=/root/.local/bin:/opt/gr00t-venv/bin:/usr/local/cuda/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin \
  gr00t-thor bash

You are now inside the container. All remaining steps run in this shell.

Step 8: (Optional) Build the Baseline bf16 Engines

Useful as a reference point on your own hardware, and a good way to confirm the pipeline works before adding quantization.

python scripts/deployment/build_trt_pipeline.py \
  --model-path checkpoints/GR00T-N1.7-LIBERO/libero_10 \
  --dataset-path demo_data/libero_demo \
  --embodiment-tag LIBERO_PANDA \
  --output-dir ./gr00t_trt_baseline

This runs export → build → verify → benchmark in about 10–15 minutes and should land near 81 ms E2E with a final-action cosine similarity of 0.9999.

Step 9: Build the Optimized NVFP4 Engines

This is the step that produces the 39.9 ms result.

9.1 Install ModelOpt

uv pip install "nvidia-modelopt[onnx]==0.39.0"
python -c "import modelopt; print('modelopt', modelopt.__version__)"

9.2 Generate dataset normalization statistics

The calibration data pipeline needs meta/stats.json, which this writes:

python gr00t/data/stats.py \
  --dataset-path examples/LIBERO/libero_10_no_noops_1.0.0_lerobot \
  --embodiment-tag LIBERO_PANDA

9.3 Export, calibrate, build, verify, and benchmark

python scripts/deployment/build_trt_pipeline.py \
  --model-path checkpoints/GR00T-N1.7-LIBERO/libero_10 \
  --dataset-path demo_data/libero_demo \
  --embodiment-tag LIBERO_PANDA \
  --output-dir ./gr00t_trt_optimized_mixed_nvfp4 \
  --execution-profile optimized \
  --quantization mixed_nvfp4 \
  --calib-dataset-path examples/LIBERO/libero_10_no_noops_1.0.0_lerobot \
  --calib-size 10

The three flags that matter are --execution-profile optimized, --quantization mixed_nvfp4, and the --calib-* pair. Drop them and you get the Step 8 baseline.

Expected output (~10–15 minutes):

Quantization: mixed_nvfp4
  vit=fp8, llm=nvfp4, dit=nvfp4, aux=fp16
  Calibration: dataset=examples/LIBERO/libero_10_no_noops_1.0.0_lerobot, samples=10

[6b] Final action output comparison:
  Cosine Similarity: 0.999743
  L1 Mean Error:     0.009774
  PASS — TRT matches PyTorch

Benchmarking TensorRT (n17_full_pipeline)...
  ViT: TRT | LLM: TRT | Action Head: TRT CUDA graph
  E2E:             median=39.9 ms, mean=41.0 ± 1.8 ms (25.1 Hz)
  Backbone:        13.56 ms (median)
  Action Head:     17.18 ms (median)

Step 10: (Optional) Verify Action Accuracy on Real Trajectories

Cosine similarity compares single forward passes. This runs whole trajectories through both backends and compares predicted actions against dataset ground truth, and doubles as the reference for integrating TensorRT inference into your own code.

# PyTorch reference
python scripts/deployment/standalone_inference_script.py \
  --model-path checkpoints/GR00T-N1.7-LIBERO/libero_10 \
  --dataset-path demo_data/libero_demo \
  --embodiment-tag LIBERO_PANDA \
  --traj-ids 0 1 2 3 4 --inference-mode pytorch --execution-horizon 8 \
  --save-plot-path ./output/pytorch_inference.png

# Optimized TensorRT engines
python scripts/deployment/standalone_inference_script.py \
  --model-path checkpoints/GR00T-N1.7-LIBERO/libero_10 \
  --dataset-path demo_data/libero_demo \
  --embodiment-tag LIBERO_PANDA \
  --traj-ids 0 1 2 3 4 --inference-mode trt_full_pipeline --execution-horizon 8 \
  --trt-engine-path ./gr00t_trt_optimized_mixed_nvfp4/engines \
  --save-plot-path ./output/trt_nvfp4_inference.png

Deploying in Your Own Code

scripts/deployment/standalone_inference_script.py is the reference implementation: it shows how to load the engines, bind inputs, and run the denoising loop against a real observation stream. The engine-loading and forward logic live in trt_model_forward.py and n1d7_optimized_runtime.py; the optimized runtime is selected automatically from export_metadata.json in the engines directory.

Note: the bundled policy server (gr00t/eval/run_gr00t_server.py) does not currently accept a TensorRT engine path; it serves the PyTorch model only. To serve the optimized engines over a network, wrap the runtime from standalone_inference_script.py in your own server process.

Troubleshooting

References

• Isaac GR00T GitHub Repository
• GR00T N1.7 LIBERO checkpoints
• NVIDIA ModelOpt (Quantization)
• NVIDIA TensorRT Documentation
